Name: 1.5v 55mA 12000rpm 1234 Totally Enclosed Electric Small Coin Vibrating Motors Totally Enclosed Type
Brand: 1.5v 55mA 12000rpm 1234 Totally Enclosed Electric Small Coin Vibrating Motors Totally Enclosed Type
SKU: 1234
Price: 1 USD
Availability: InStock
Rating: 4.7 (104 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: 1234

Type: Micro Motor

Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, 1.5v 1234 dc coin type motor for mobile phone ,health dental ,vibrator

証明: ce, RoHS

Construction: Permanent Magnet

Commutation: Brush

Protect Feature: Totally Enclosed

Efficiency: Ie 3

Torque: Optional

Speed(RPM): 12000Â±2500rpm

Continuous Current(A): 55mA

Diameter: 12mm

Thickness: 3.4mm

Wire length: 30mm

Operating Voltage: DC1.5~3.2V

Output range: 1.0W~3.5W

Motor Type: Coin Type DC motor

Item: small electric vibrating motors

Weight: 1.5g (approx)

Keywords: 1234 coin type motor vibration

Typical Application: Mobile phone,Health dental .personal care

基本情報

証明: ce, RoHS

Model Number: 1234

お支払配送条件

Packaging Details: 50 pieces motors per inner plastic tray, size 205*165*7(mm) 100 pieces plastic trays per outer carton, size 330*215*350(mm)

製品の説明

Product Description

Product Application

Best Quality for 1.5V 1234 DC Micro Coin Vibration Motor (1234L30) is widely used for Dental equipment, Beauty product, Mobile Phone, Cell Phone, Pager, Personal care,Health product equipment ,Massager, Massage Rod, Eye Massager, Body Massager, Vibrator.etc.

SPECIFICATIONS FOR BEST QUALITY FOR 1.5V DC COIN TYPE MICRO MOTOR (1234L30)
Model Size	Motor diameter	mm	12
	Thickness	mm	3.4
	Wire length	mm	30
Main performance parameters	Rated voltage	V	1.5V
	Speed (max. & min.)	r/min	11000~14000
	Rated current	mA	55
Customize parts	Dia /thickness	mm	Customise
	Wire length/Colour	mm/Red,Black,White	Customise
	Rotation	CW/CCW	CW/CCW

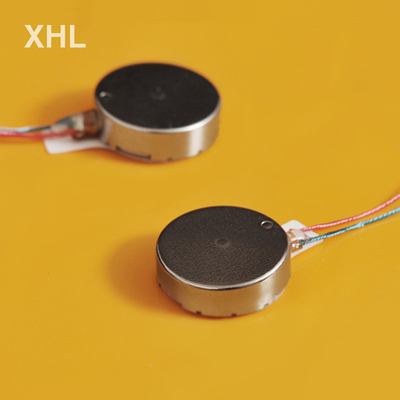

Detailed Images

3.0v 1234 coin type motor

Motor Diameter :12mm

3.0V 1234 coin type motor

Thickness : 3.4mm

Our Service

Packing & Delivery

Packing:

FOAM INNER , CARTON BOX OUTER

Certifications

1.5v 55mA 12000rpm 1234 Totally Enclosed Electric Small Coin Vibrating Motors Totally Enclosed Type

Product Application

3.0v 1234 coin type motor

Motor Diameter :12mm

3.0V 1234 coin type motor

Thickness : 3.4mm

Packing:
