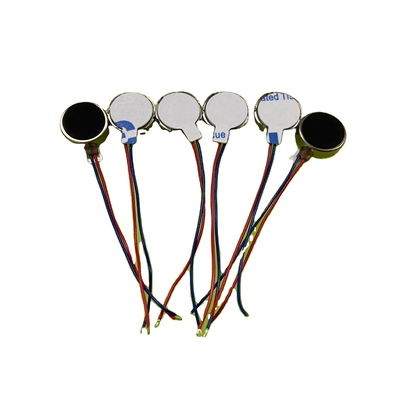

ホーム /製品/ブラシのない振動モーター/SCB0625L-01L Medical Equipment Lowest Price Coin Vibration Motors Electric Brushed DC 3V for smart watch and samrt watch

SCB0625L-01L Medical Equipment Lowest Price Coin Vibration Motors Electric Brushed DC 3V for smart watch and samrt watch

100 Pieces
MOQ
$2.66(100 - 999 Pieces) $2.58(1000 - 9999 Pieces) $2.46(>=10000 Pieces)
価格
SCB0625L-01L Medical Equipment Lowest Price Coin Vibration Motors Electric Brushed DC 3V for smart watch and samrt watch
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: SCB0625L-01L
Warranty: 3months-1year
Type: COIN MOTOR
Customized: No
Rated Speed (r/min): 10000
Nominal Voltage: 3.0
Application: Medical equipment, smart medicine box, etc
Technology Type: BRUSH
Diameter (mm): 6.0
Thickness (mm): 2.5
Operating Voltage (Vdc): 2.5~3.5
Rated Current MAX (mA): 100
Typical Current (mA): 78
Rise Time (ms) MAX *: 90
Fall Time (ms) MAX *: 50
Vibration Force (G): 0.40
HS: 8501109990
証明: None
基本情報
証明: None
Model Number: SCB0625L-01L
お支払配送条件
Packaging Details: 4,000 pcs per carton, carton size 460mm*285mm*160mm 8,000 pcs per carton, carton size 460mm*285mm*305mm
製品の説明
Product introduction
Product name:
Lowest Price electric Brushed Coin Vibration 0625 Motors DC 3V For smart watch and car

At 6mm, the SCB0625L-01L is the smallest diameter, brush type, coin vibration motor on the market. Its ideal for light weight wearable devices such as fitness trackers and smart watches. As this coin ERM vibration motor is relatively expensive, we recommend you use this motor only if your design cannot utilize one of our lower priced 8mm or 10mm diameter coin vibration motors.
Products Description
Show Me All Products (Shown below are only six models of them：SCB0625L-01L; SCB0825L-02F; SCB1020F-01F; SCB1026L-02F; SCB1034F-40F; SCB1234L-16F. If you want to know about other models, please email us.)
SAIBOW P/N
Tech. Type
Motor Size
Voltage
Current
Response Time
Rated speed (rpm)
Vibe Force (G)
Dia (mm)
Thickness (mm)
Operating
Rated (ma) MAX
Rise Time (ms)
Fall Time (ms)
SCB0625L-01L
BRUSH
6
2.5
2.5~3.5 Vdc
100
90
50
10,000
0.4
SCB0825L-02F
BRUSH
8
2.5
2.7~3.3 Vdc
85
90
50
13,500
0.7
SCB1020F-01F
BRUSH
10
2
2.7~3.3 Vdc
90
90
50
9,000
1.1
SCB1026L-02F
BRUSH
10
2.7
2.7~3.3 Vdc
85
90
50
9,000
0.8
SCB1034F-40F
BRUSH
10
3.4
2.7~3.3 Vdc
80
90
50
12,000
1.6
SCB1234L-16F
BRUSH
12
3.4
2.7~3.3 Vdc
80
90
50
9,000
2
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.

Mechanical Tear Down Of Coin Vibration Motor
Product Drawing:
The adhesive sponge or adhesive tape could be removed. Connectors could be added to the lead wires. Please negotiate before making samples for any specific requirements.
Application scenario
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors. 3-4mm height reflow solderable SMD type vibration motors 4-7mm diameter cylinder type brushed vibration motors. 5-9 diameter coin type brushless vibration motors.
Recommend Products
Company Profile
SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm- unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).


SAIBOW With the management policy of
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.
Production Workshop
Payment & Shipping
● Trade Assurance: The first order, we suggest you to use Trade Assurance.
● T/T: If stocks, 100% payment before shipping; if customized order, 30%  deposit deposit before production and balance 70% should be paid before delivery.
● Western Union, Money Gram, Paypal, all available.
● L/C: for large order.
● In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
● Large order: by air or sea, you could choose it.
● If you have your own forwarder, please tell us the detailed information.
MOTOR TRANSPORT
OCEAN SHIPPING
AIR TRANSPORT
FAQ
1. Can you make the gearbox with custom specifications? YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience. 2.Do you provide the samples? YES. Our company can provide the samples to you. 3. Do you have the item in stock? I am sorry we donot have the item in stock, All products are made with orders. 4. How can I know the product is suitable for me? Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 5.How to ship to us? We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
