ホーム /製品/DC振動モーター/Small hot sale 1.2V 820 dc coreless motor Drip-PROOF for educational DIY toy

Small hot sale 1.2V 820 dc coreless motor Drip-PROOF for educational DIY toy

100 Pieces
MOQ
$0.87(100 - 999 Pieces) $0.86(>=1000 Pieces)
価格
Small hot sale 1.2V 820 dc coreless motor Drip-PROOF for educational DIY toy
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: OTHER
Model Number: MD0820
Usage: DIVERSE
Type: Brush Motor
Torque: 2g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: DRIP-PROOF
Speed(RPM): 14000
Continuous Current(A): 0.37
Efficiency: IE 2
Operating Voltage: 0.8~3 V
Starting Voltage: 0.6 V
Rotation Direction: CW/CCW
No Load Current: 70 mA Max
Stall Current: 1.79 A Max
Stall Torque: 12.5 g.cm
Load Current: 371 mA
Terminal Resistance: 0.6 ±5% Ω
Torque Constant: 6.62 g.cm
証明: CE
基本情報
証明: CE
Model Number: MD0820
お支払配送条件
Packaging Details: Packaging :Polystyrene / Hard paper box / water proof layer
Supply Ability: 20000 Piece/Pieces per Month
製品の説明
Product information

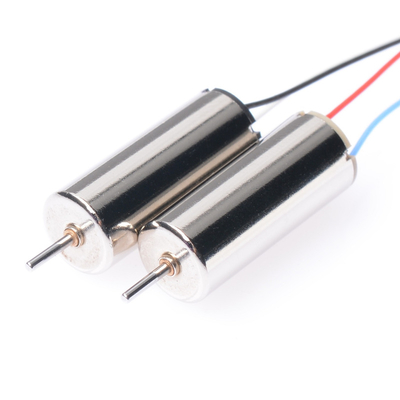

MD0820 DC permanent magnet coreless brush motor

Customization service and OEM are acceptable
Rated Voltage
Output At Max.Efficiency
No Load Current
No Load Speed
Weight
1.2 V
0.37 W
70 mA Max
14000 ± 12% Rpm
About 5g
Certifications
Company Profile
Wingfong Industry is a professional DC motor designer and manufacturer in inland China, our featured products are comprised of coreless brush motor,dual-shaft motor,vibration motor, drive motor,brushless motor etc. Which have been widely used in products from household, commercial and industrial,compare to those coastal competitors we have advantages of lower cost of labour,management and raw material which makes our products more competitive.
