ホーム /製品/産業用振動モーター/Totally Enclosed Powerful Micro Drone 3.4V 0615 50000RPM Motor For Scientific Experiment Equipments And Fan

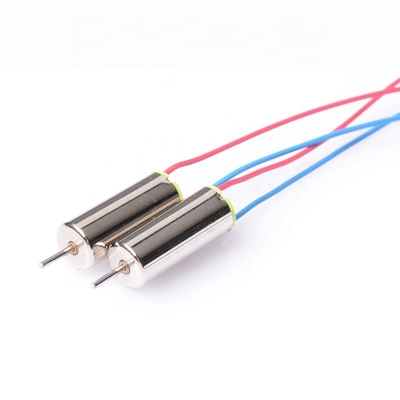

Totally Enclosed Powerful Micro Drone 3.4V 0615 50000RPM Motor For Scientific Experiment Equipments And Fan

100 Pieces
MOQ
$0.75(100 - 9999 Pieces) $0.70(>=10000 Pieces)
価格
Totally Enclosed Powerful Micro Drone 3.4V 0615 50000RPM Motor For Scientific Experiment Equipments And Fan
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: Other
Model Number: MD0615V3.4S50000L200
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Drone
Type: Micro Motor
Torque: 12 g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 50000 rpm ± 2000 rpm/min
Continuous Current(A): ≤140mA
Efficiency: IE 2
Rated Voltage: 3.4 V DC
Operating Range: 1.5~4.5 V DC
No Load Speed: 50000 rpm ± 2000 rpm/min
No load Current: 80mA
Stall Torque: 12g.cm
Terminal Resistance: 1.7 ± 5% Ω
Starting Voltage: 1.2 V
The use of temperature range: -10℃~60℃≤60%RH
Weight: About 1.9 g
Rotation Direction: CW/CCW
証明: ce, RoHS
基本情報
証明: ce, RoHS
Model Number: MD0615V3.4S50000L200
お支払配送条件
製品の説明
Product Overview
Powerfull 3.4V 0615 50000RPM Micro Drone Motor for Scientific Experiment Equipments and Fan
Rated Voltage
No Load Current
No Load speed
Stall Current
Stall Torque
3.4V DC
80mA Max
50000 ± 12% Rpm/min
2 A
12 g.cm
Company Profile
Yichang Wingfong Industry & Trade Co.,Ltd
Factory is located in Zigui county, Yichang city, Hubei province. Mainly supply Permanent Magnet DC Coreless Motor, Core Motor and Vibration Motor which been widely used for drone, massagers, toothbrushes and so on. Customized also available. At present, our products passed ISO9001, SGS, ROHS certification and so on.
Products are exported to Germany, the United States and South Korea. Committed to supplying our high quality products to the whole world.
Certifications
Product Uses
Shipping & Packing
Recommend Products
FAQ
Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor can be customized. Such as rotation direction, working voltage, lead wire length, lead wire material, rated speed, torque etc, and motor's shaft dimension can be modified too.

Q: How should I choose a suitable model when I'm not sure about the exact parameters?
A: We can make some suggestions as long as you provide your requirements. Like the usage, working condition, excepted service life etc.

Q:Is it possible for you to develop new motors?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples. Sample producing time depends on different types, normally within 25 days.
